| ブランド名: | JCDRILL |
| モデル番号: | JCM200 |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 支払条件: | L/C、T/T、D/A、D/P、Western Union |
| 供給能力: | 月20セット |

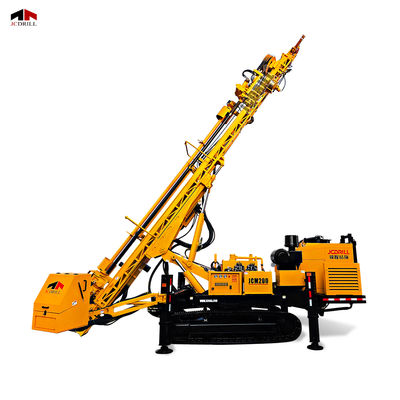

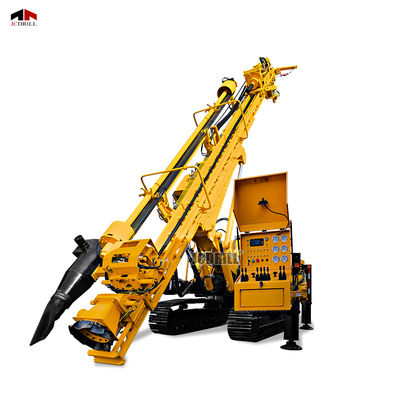

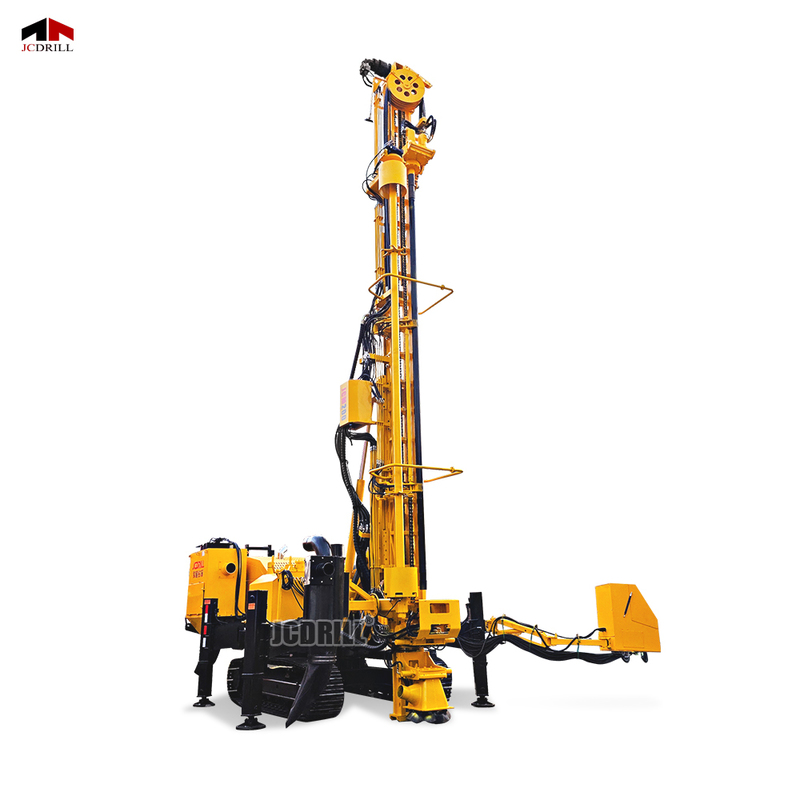

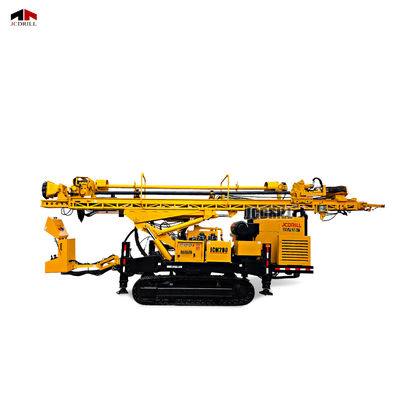

The JCM200 fully hydraulic multifunctional crawler drilling rig is a high-performance, all-in-one drilling solution. It is designed for DTH drilling, rock drilling, anchor drilling, auger drilling, exploration, and blasting hole projects.
Equipped with automatic rod changing system, integrated mud pump, and dust collector, the JCM200 offers unmatched efficiency, convenience, and versatility in the field. Supporting multiple drilling techniques--including down-the-hole (DTH) drilling, impact drilling, reverse circulation drilling, cutting drilling, auger drilling, and pipe-following drilling--this rig adapts to a wide range of geological conditions.
Powered by a robust Weichai WP10-330-247 engine and advanced hydraulic system, it ensures fast penetration, stable performance, and lower operating costs.
Whether your project involves geological survey, urban deep foundation anchoring, slope stabilization, geothermal wells, water wells, or blasting operations, the JCM200 delivers multifunctional drilling capability in one crawler-mounted platform, making it ideal for diverse construction, mining, and geotechnical projects.
| Specification | Unit | JCM200 |
|---|---|---|
| Drilling Performance | ||
| Drilling Diameter (DTH) | mm | Φ105-Φ273 |
| Drill Depth (DTH by rod handler) | m | 45 |
| Drilling Angle | ° | 45-90 |
| Feed System | ||
| Feed Stroke | m | 8 |
| Feed Force | KN | 40 |
| Lifting Force | KN | 80 |
| Rotating Torque | N*m | 10,000 |
| Rotation Speed | r/min | 65-130 |
| Clamp Range | mm | Φ76-Φ200 |
| Clamping Force | T | 20 |
| Storage Rods | m | 6 × φ102 × 6 |
| Power System | ||
| Engine Brand | Weichai | |
| Engine Power | kW | 247 (WP10-330-247) |
| Walking Mechanism & Frame | ||
| Body Rotation | ° | 360 |
| Traveling Speed | km/h | 1.5 |
| Gradeability | ° | 21 |
| Ground Clearance | mm | 300 |
| Mud Pump | BW100 | |
| Dust Collector | Standard | |
| Weight & Dimensions | ||
| Transportation Size | mm | 1150 × 2850 × 3800 |
| Drilling Size | mm | 6800 × 2850 × 11500 |
| Weight | Ton | 21.5 |
A1: Yes. The JCM200 is equipped with DTH drilling mode for efficient penetration in hard rock formations.
A2: The rig has automatic rod changer, integrated mud pump, and dust collector, allowing one machine to handle DTH, rock drilling, anchor drilling, auger drilling, exploration, and blasting.
A3: Up to 45 meters (DTH by rod handler).
A4: Full hydraulic control, automatic rod handling, and integrated systems ensure fast penetration, reduced auxiliary time, and lower operating costs.
A5: Yes. The crawler chassis with high-leg supports allows easy loading, unloading, and movement on muddy or uneven terrain.
A6: Yes. Optional equipment such as foam pump, generator, or additional hydraulic tools can be installed according to project requirements.
