| ブランド名: | JCDRILL |
| モデル番号: | CSD300A 6x4 |
| MOQ: | 1セット |
| 価格: | Negotation |
| 支払条件: | L/C、T/T、Western Union |
| 供給能力: | 年間2000セット |
| Attribute | Value |
|---|---|
| Type | 6 x 4 Truck Water Well Drilling Rig with Air Compressor |
| Drilling Depth | 300m |
| Drilling Diameter | 140-450mm |
| Drilling Method | Mud Rotary and Air DTH |
| Warranty | One Year |
| Drill Pipe Length | 3m /4.5m |
| Drill Pipe diameter | 89 / 102 /114mm |
| Power type | Diesel |
| Usage | Water Well |
| Product name | Combined Truck Water Well Drilling Rig |
| Condition | New |
| Power(w) | 93KW |
| Item | Parameter | Value |
|---|---|---|
| 1 | Geology drilled | All kinds |
| 2 | Drilling Type | DTH & Mud Rotary |
| 3 | Drill system and operation | Hydraulic |
| 4 | Hole Diameter | Φ140--Φ450 mm |
| 5 | Hole Depth | 300 m |
| 6 | Rotation Torque | 3200 Nm (1st Gear) 4500 Nm (2nd Gear) |
| 7 | Rotation Speed | 0-80 rpm (1st Gear) 0-100 rpm (2nd Gear) |
| 8 | Drill pipe diameter | 76/89/102/114 mm |
| 9 | Drill pipe length | 3000 mm |
| 10 | Max. Lifting force | 10000 N |
| 11 | Max. Feed Speed | 18 m/min |
| Item | Parameter | Value |
|---|---|---|
| 12 | Lifting force of Main winch(Optional) | 4 T |
| 13 | Lifting force of hoist | 0.8 T |
| 14 | Length of steel wire rope(tool winch) | 100 m |
| 15 | Lifting height of tool winch | 8 m |

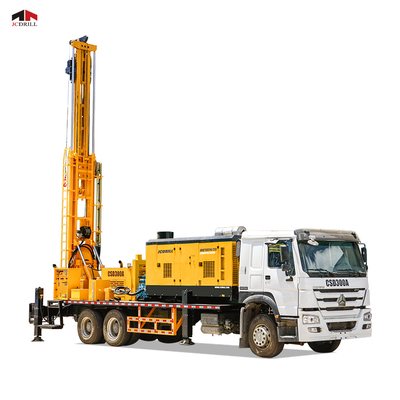

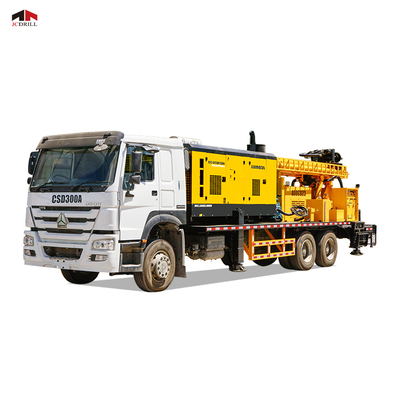

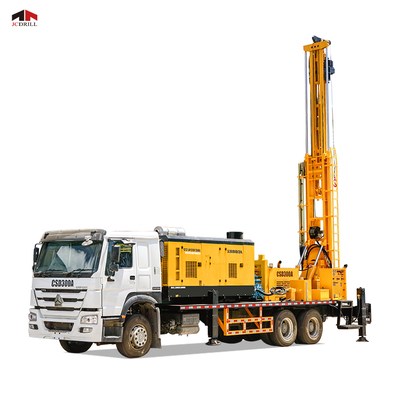

CSD300A is a new, efficient, multifunctional hydraulic truck mounted telescoping mast well drilling rig, mainly applicable to:
Our comprehensive after-sales service system includes:
